?高靈敏度 ?兩個磁檢測與非磁性金屬 ?光學，聲學和振動報警 ?電池壽命長 ?非常高的可靠性 ?易用 ?自校準 ?歸納的快速電池充電器 （可選的）模型是pd140vr） 增強型手持式金屬探測器 攜帶盒V140符合人體工程學的形狀特殊的 裝置的檢測不允許的干擾的運營商的手指特種工效學 pd140vr手持金屬探測器操作功能在金屬探測器的轉向控制和signali算子3位開關的電源開關斷開從中央對無論是左或右的位置，這取決于設備是否是 被操縱的視覺與音頻/報警（或左）音頻/視覺/振動警報（右）。在金屬探測器的報警和報警的LED將照亮 蜂鳴器將被激活的時間是短的。在這個操作中，保持遠離任何金屬物體表面檢測到的報警信號已經走了出來。LED燈的電力設備上表明，是可操作的。返回到OFF位置開關到開關的裝置。增強型手持式金屬探測器 電源供應器 pd140v：9V干電池 鎳氫電池充電器9V的接觸或與 pd140vr 9V鎳氫電池充電器與bc140f歸納： 具有三位置開關選擇 兩個不同的報警模式 同時光學和聲學的報警。 內置的蜂鳴器（75分貝，在90厘米的距離） 光報警和振動手柄 靈敏度調整由外部手段三位選擇器 在連續操作的電池壽命 堿性電池具有最大的150小時。 鎳氫電池具有最高：40小時 如果指示燈 電源（綠色） 報警（紅色燈） 低電池充電（blinking黃光） 操作溫度為15°C相對濕度：0到65°c至95 %） 制造的灰色，ABS和聚碳酸酯共混物的耐沖擊 340×80×55毫米的尺寸 體重71公斤（含電池） 目前，符合國際標準，適用于電氣安全、適用和e.m.c. to the歐盟法規運營商控制的和信令設備 1報警信號報警燈：紅色 （2）黃燈：電池低 低電池信號（blinking） 3電源燈：“綠色電力” 和“就緒”狀態信號。 當充電bc140f在線。 表明的電荷狀態 4靈敏度調整 5電源開關 ?位置：左視覺和audible鬧鐘信令 ?正確的位置：視覺和振動報警信號 6報警蜂鳴器bc140f 歸納電池快速充電器V140攜帶盒在bc140f單元提供了充電，沒有鎳氫電池的電接觸，在pd140vr金屬探測器。在bc140f電池 設計了一種充電器能夠被連接到在級聯與其他類似裝置。 技術特點 電源：90 265vrms，50 / 60 Hz，4 W 充電時間：4小時（或不完整的周期） 開/關開關帶指示燈 在級聯連接與其他類似的裝置 （最多20元） 尺寸：155×82×97（H）mm 0.500重量：kg 電源：1.80米的電纜長度 電纜連接的長度單位為m，在級聯。 制造的灰色ABS，耐沖擊 目前，符合國際標準 適用于電氣安全，e.m.c. and to the 適用的歐盟法規 攜帶盒（V140），在抗休克 材料，設計了一種對包含以下 項目：pd140手持式金屬探測器， 測試件，bc140f快速電池充電器， 如果電源電纜和指導 使用。 技術特點 尺寸：445×300×180毫米 pd140 2300公斤的重量和電池包括： 充電器 耐沖擊的ABS和特種施工 存儲compartments V140 carryingcase使理想的和最緊湊的手段，safest 傳輸?shù)?/span>pd140 目前，符合國際標準 適用于電氣安全，e.m.c. and to the 適用的歐盟法規 綠色LED blinking：進展中的電荷。 blinking電荷穩定后 已完成的 電源燈 開/關開關 手持式金屬探測器的pd140增強是一個高靈敏度器件設計 檢測磁性和非磁性金屬質量。 該裝置可以用于檢測武器，和其他detonators 英文版PD140手持金屬探測器
FEATURE HIGHLIGHTS
? High Sensitivity
? Detection of both Magnetic and Non-Magnetic Metals
? Optical, Acoustical and
Vibration Alarm
? Long Battery Life
? Very High Reliability
? Easy to Use
? Self-Calibrating
? Fast Inductive Battery Charger
(optional for PD140VR model)
EnHAncEd HAnd HELd METAL dETEcToR
V140 Carrying Case
The special ergonomic shape of The
device allows inspecTion wiThouT The
inTerference of The operaTor’s fingers
SpEcIAL
ERGonoMIc
SHApEBc140F
PD140
8
Operating Features
Turning on the Metal Detector Operator Controls and Signali
Switch the 3-position Power/Mode switch from the central OFF
position to either left or right, depending on whether the device is
to be operated with audio/visual alarms (left) or with
audio/visual/vibration alarms (right).
The Metal Detector's ALARM LED will light up and the Alarm
Buzzer will be activated for a short time. During this operation,
keep the detection surface away from any metal objects until the
alarm signaling has gone out.
The POWER LED lights up to indicate that the device is operable.
Return the switch to the OFF position to turn off the device.
NOTE: the device emits brief audio/visual alarm whenever power is turned on,
end a brief visual alarm whenever power is turned off, or when power is lost.
OFF
ALARM LOW BATTERY POWER
Fig. 5
ALARM
LOW BAT
POWER
Power/Mo
? Lef
ala
? Rig
vib
Alarm Buz
Program Version: n/a Rev.: FI 005 GB100K2 v1 Date: 2005-10-21
MEdIUM
Low HIGH
1 2 3
4 5 6
EnHAncEd HAnd HELd METAL dETEcToR
ceia reserves the right to make changes, at any moment and without notice, to the models (including programming), their
accessories and optionals, to the prices and conditions of sale
Zona Industriale 54/G, 52041 Viciomaggio - Arezzo (ITALY)
Tel.: +39 0575 4181 Fax: +39 0575 418298 E-mail:
w w w . c e i a . n e t dp009 Uk 100k2V3-42090
TEcHnIcAL FEATURES
powER SUppLY
pd140V: 9V dry battery
or 9V niMH with contact charger
pd140VR: 9V niMH with BC140F inductive charger
THREE-poSITIon SwITcH wITH SELEcTIon
oF Two dIFFEREnT ALARM ModES
simultaneous optical and acoustic alarm.
Built-in buzzer (75 dBa at a distance of 90 cm)
Optical alarm and handle vibration
SEnSITIVITY AdjUSTMEnT BY MEAnS oF A THREE-poSITIon ExTERnAL SELEcToR
BATTERY LIFE In conTInUoUS opERATIon
with alkaline batteries: 150 hours max
with niMH batteries: 40 hours max
IndIcAToR LAMpS FoR
Power on (green light)
alarm (red light)
Low battery charge (blinking yellow light)
opERATInG TEMpERATURE -15°C to 65°C (relative humidity: 0 to 95% )
Manufactured in grey, shock-resistant Polycarbonate and aBs blend
dIMEnSIonS 340 x 80 x 55 mm
wEIGHT (wITH BATTERY) 0.400 kg
Conforms to the international standards currently applicable for electrical safety, e.M.C. and to the applicable
Ce regulations
opERAToR conTRoLS
And SIGnALLInG dEVIcES
1 ALARM Red Light: alarm signalling
2 Low BATTERY Yellow light:
Low Battery signalling
(blinking)
3 powER Green light: “Power on”
and “ready” status signalling.
When charging on the BC140F,
indicates the status of the charge
4 SEnSITIVITY AdjUSTMEnT
5 powER/ModE switch
? Left position: visual and audible alarm
signalling
? Right position: visual and vibration
alarm signalling
6 ALARM BUZZER

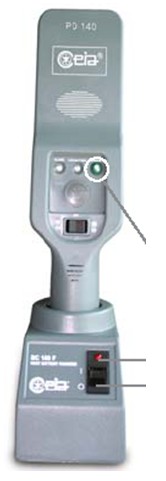

Bc140F
FAST IndUcTIVE BATTERY cHARGER
V140
cARRYInG cASE
The Bc140F unit provides recharging, without
electrical contact, of the niMH batteries in the
pd140VR Metal detectors. The BC140F battery
charger is designed to be able to be connected
in cascade with other similar devices.
TEcHnIcAL FEATURES
powER SUppLY: 90-265Vrms, 50/60 Hz, 4 W
REcHARGInG TIME: 4 hours or less (complete cycle)
on/oFF switch with indicator lamp
Connection in cascade with other similar devices
(up to 20 units)
dIMEnSIonS: 82 x 155 x 97 (h) mm
wEIGHT: 0.500 kg
LEnGTH oF MAInS cABLE: 1.80 m
Length of cable for connecting units in cascade: 0.17 m
Manufactured in grey, shock-resistant aBs
Conforms to the international standards currently
applicable for electrical safety, e.M.C. and to the
applicable Ce regulations
The V140 carrying-case, in shock-resistant
material, is designed to contain the following
items: a PD140 Hand Held Metal Detector, a
test piece, a BC140F fast battery-charger, a
power supply cable and the instructions for
use.
TEcHnIcAL FEATURES
dIMEnSIonS: 445 x 300 x 180 mm
wEIGHT: 2.300 kg including PD140 and battery
charger
shock-resistant aBs construction and the special
storage compartments make the V140 carryingcase the ideal, safest and most compact means of
transporting the PD140
Conforms to the international standards currently
applicable for electrical safety, e.M.C. and to the
applicable Ce regulations
GREEn LEd
blinking: charge in progress;
steady after blinking: charge
completed
powER LAMp
on/oFF SwITcH
The PD140 enhanced Hand Held Metal Detector is a high sensitivity device designed
to detect magnetic and non-magnetic metal masses.
The unit can be used to detect weapons, detonators and other small pieces of metal
concealed in baggage or correspondence.
The bidirectional detection probe allows both sides to detect metals evenly. The
sensitivity of the surface is enhanced by the shape making operation of the device
reliable and easy to operate.
The PD140 Metal Detector is available in two standard sensitivity versions: pd140V
and pd140VR (model equipped for no-contact induction battery charger). Both are
available with a 9V dry battery or rechargeable ni/MH batteries.
Belt holster |
